Name: Wedge Power And Data Module
Brand: Discontinued
SKU: 714
Availability: InStock

Wedge Power And Data Module

PDF Download Request Price Similar Products

Wedge Power And Data Modules provide a compact, yet stylish solution for the increasing power and communication needs of the modern workplace.

DISCONTINUED PRODUCT – Please see alternative Power Modules on our website.

Featuring integral fuses, segregated power/data together with options to clamp to a desk edge, or mount on a slatwall, Wedge Power And Data Modules meet the needs of users, whilst minimising the impact on available workspace.

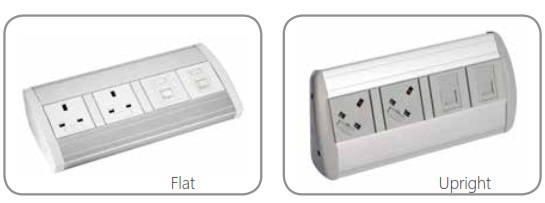

Depending on requirements, the Wedge Power And Data Modules can be specified as either vertical or horizontal mounted units, thereby offering even greater flexibility.

81PS01, 81P416, 81P422, 81PS02, 81P424, 81P456, 81U395, 81U594, 81U531, 81U463, 81U762, 81U763, 81CP01, 81CP02, 81CP03, 81CP13, 81CP14, 81CP15, 81CP04, 81CP05, 81CP06, 81CP28, 81CP29, 81CP30, 81CP31, 81CP32, 81CP33

They can also be used in conjunction with our ranges of under desk power and data modules, to provide an even wider choice of solutions.

The Wedge Module is available with a wide choice of sockets, including power, data, audio, and USB.

It can also be specified with a wide range of international sockets if required.

Wedge Power And Data Module Features Include:
Standard anodised aluminium body

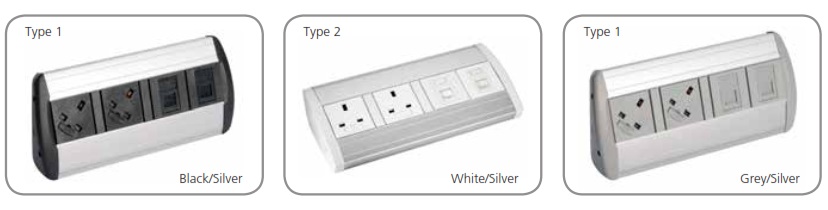

Choice of black, white or grey fascia’s and end caps
All sockets are individually fused at 3.15A or 5A
Fitted with a 1m mains lead to 3 pole connector as standard
Data leads are supplied at a 3m length as standard
Wedge modules can be mounted via a clamp, adhesive fitting kit or slat wall mount

Wedge Power And Data Module Standard Configurations:

Code	Colour	Description
81PS01	Black/Silver	Wedge Power Module – 2 x power, 1m mains lead to 3 pole connector
81P416	Grey/Silver	Wedge Power Module – 2 x power, 1m mains lead to 3 pole connector
81P422	White/Silver	Wedge Power Module – 2 x power, 1m mains lead to 3 pole connector
81PS02	Black/Silver	Wedge Power Module – 4 x power, 1m mains lead to 3 pole connector
81P424	Grey/Silver	Wedge Power Module – 4 x power, 1m mains lead to 3 pole connector
81P456	White/Silver	Wedge Power Module – 4 x power, 1m mains lead to 3 pole connector
81U395	Black/Silver	Wedge Power And Data Module – 2 x power, 1m mains lead to 3 pole connector, 2 x RJ45 data Cat6, 3m data leads
81U594	Grey/Silver	Wedge Power And Data Module – 2 x power, 1m mains lead to 3 pole connector, 2 x RJ45 data Cat6, 3m data leads
81U531	White/Silver	Wedge Power And Data Module – 2 x power, 1m mains lead to 3 pole connector, 2 x RJ45 data Cat6, 3m data leads
81U463	Black/Silver	Wedge Power And Data Module – 4 x power, 1m mains lead to 3 pole connector, 2 x RJ45 data Cat6, 3m data leads
81U762	Grey/Silver	Wedge Power And Data Module – 4 x power, 1m mains lead to 3 pole connector, 2 x RJ45 data Cat6, 3m data leads
81U763	White/Silver	Wedge Power And Data Module – 4 x power, 1m mains lead to 3 pole connector, 2 x RJ45 data Cat6, 3m data leads
81CP01	Black/Silver	Wedge Power Module – 1 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger
81CP02	Grey/Silver	Wedge Power Module – 1 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger
81CP03	White/Silver	Wedge Power Module – 1 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger
81CP13	Black/Silver	Wedge Power And Data Module – 1 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger, 1 x RJ45 data Cat6, 3m data leads
81CP14	Grey/Silver	Wedge Power And Data Module – 1 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger, 1 x RJ45 data Cat6, 3m data leads
81CP15	White/Silver	Wedge Power And Data Module – 1 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger, 1 x RJ45 data Cat6, 3m data leads
81CP04	Black/Silver	Wedge Power Module – 2 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger
81CP05	Grey/Silver	Wedge Power Module – 2 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger
81CP06	White/Silver	Wedge Power Module – 2 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger
81CP28	Black/Silver	Wedge Power And Data Module – 2 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger, 1 x RJ45 data Cat6, 3m data leads
81CP29	Grey/Silver	Wedge Power And Data Module – 2 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger, 1 x RJ45 data Cat6, 3m data leads
81CP30	White/Silver	Wedge Power And Data Module – 2 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger, 1 x RJ45 data Cat6, 3m data leads
81CP31	Black/Silver	Wedge Power And Data Module – 2 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger, 2 x RJ45 data Cat6, 3m data leads
81CP32	Grey/Silver	Wedge Power And Data Module – 2 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger, 2 x RJ45 data Cat6, 3m data leads
81CP33	White/Silver	Wedge Power And Data Module – 2 x power, 1m mains lead to 3 pole connector, 1 x USB 2A Charger, 2 x RJ45 data Cat6, 3m data leads

Wedge Power And Data Module – Starter Cable With 13A Plug To Female 3 Pole Connector

Length	Black Plug/Cable	White Plug/Cable
1m	600001	600197
1.5m	600002	600198
2m	600003	600011
2.5m	600004	600911
3m	600005	600013
3.5m	600006	600912
4m	600007	600669
5m	600008	600566
6m	600009	600599
7m	600010	600918
8m	600029	600919
9m	600031	600920
10m	600084	600910

Wedge Power And Data Module – Interconnect Cable With Male 3 Pole Connector To Female 3 Pole Connector

Length	Black Plug/Cable	White Plug/Cable
0.3m	620009	620018
0.5m	620010	620019
1m	620011	620020
1.5m	620012	620021
2m	620013	620022
2.5m	620014	620023
3m	620015	620024
3.5m	620016	620025
4m	620017	620026
